What are @tweakable annotations?

Essential

@tweakable annotations are special JSDoc comments that automatically generate interactive controls for your code parameters. They allow users to adjust values in real-time without editing code, making your WebSim creations more engaging and accessible.

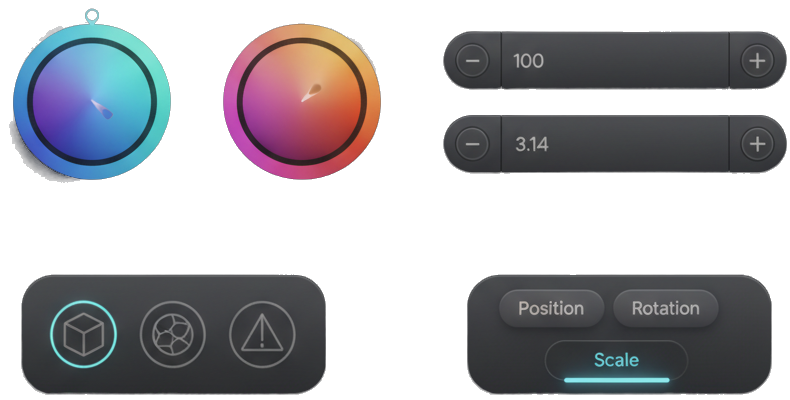

Collection of generated UI controls

Examples of automatically generated controls: sliders for numbers, toggles for booleans, color pickers for hex values, and grouped controls for objects

🎛️

Automatic UI Generation

Controls are automatically created based on your data types

⚡

Real-time Updates

Changes apply instantly without page reload

🎨

Enhanced Creativity

Perfect for visual effects, animations, and interactive experiences

Basic Syntax

Core

The basic syntax follows standard JSDoc comment format with the @tweakable tag:

@tweakable syntax breakdown

Anatomy of a @tweakable annotation showing the JSDoc comment structure and variable declaration

JavaScript
/* @tweakable [optional description] */
const variableName = defaultValue;

Syntax Rules

  • Must use block comment syntax: /* */
  • Description is optional but recommended for clarity
  • Must be placed directly above the variable declaration
  • Works with const, let, and var

Examples

Practical

Simple Values

Numbers
/* @tweakable animation speed multiplier */
const animationSpeed = 1.0;

/* @tweakable particle count */
const particleCount = 100;

/* @tweakable rotation angle in degrees */
const rotationAngle = 45;
Strings & Colors
/* @tweakable primary color */
const primaryColor = "#ff6b6b";

/* @tweakable background texture */
const bgTexture = "marble";

/* @tweakable particle shape */
const particleShape = "circle";
Booleans
/* @tweakable enable particle trails */
const showTrails = true;

/* @tweakable auto-rotate camera */
const autoRotate = false;

/* @tweakable debug mode */
const debugMode = true;

Complex Objects

Object Properties
/* @tweakable player dimensions */
const playerSize = {
    width: 32,
    height: 48
};

/* @tweakable light position in 3D space */
const lightPosition = {
    x: 10,
    y: 5,
    z: 15
};

/* @tweakable RGB color values */
const customColor = {
    r: 255,
    g: 100,
    b: 150
};

Real-world Use Cases

Real-time parameter adjustment demo

Live demonstration of @tweakable controls affecting a 3D scene in real-time - adjusting particle count, colors, and animation speed instantly updates the visual output

🎮 Game Development

/* @tweakable player movement speed */
const playerSpeed = 5.0;

/* @tweakable jump force */
const jumpForce = 12;

/* @tweakable gravity strength */
const gravity = 0.8;

🎨 Visual Effects

/* @tweakable particle system */
const particles = {
    count: 500,
    size: 2.0,
    speed: 1.5,
    opacity: 0.8
};

/* @tweakable wave amplitude */
const waveHeight = 50;

🌐 3D Scenes

/* @tweakable camera settings */
const camera = {
    fov: 75,
    near: 0.1,
    far: 1000
};

/* @tweakable material properties */
const material = {
    metalness: 0.5,
    roughness: 0.2
};

Supported Data Types

Reference
Visual representation of supported data types

Artistic visualization of how different JavaScript data types are interpreted and transformed into appropriate UI controls

🔢

Numbers

Integers and floats generate sliders or number inputs

const speed = 5.5; → Slider/Input
📝

Strings

Text values create text inputs or dropdowns

const name = "Player"; → Text Input
🔘

Booleans

True/false values generate toggle switches

const enabled = true; → Toggle Switch
🎨

Colors

Hex colors automatically get color pickers

const color = "#ff6b6b"; → Color Picker
📦

Objects

Object properties create grouped controls

const pos = {x: 0, y: 0}; → Control Group
📊

Arrays

Arrays create dynamic list controls

const items = [1, 2, 3]; → List Editor

Best Practices

Tips
Best practices infographic

Visual guide showing recommended patterns (green) and anti-patterns (red) for effective @tweakable annotation usage

✅

Use Descriptive Names

Choose variable names that clearly indicate their purpose

/* @tweakable particle emission rate */
const particleEmissionRate = 10;
✅

Add Helpful Descriptions

Include descriptions when the variable name isn't self-explanatory

/* @tweakable controls how bouncy the ball is */
const restitution = 0.8;
✅

Choose Sensible Defaults

Set default values that work well out of the box

/* @tweakable camera field of view */
const fov = 75; // Good default for most scenes
❌

Avoid Overly Complex Objects

Keep nested objects simple for better UI generation

// Too complex
const config = {
    render: { quality: { shadows: { resolution: 1024 } } }
};
⚠️

Don't Overuse @tweakable

Only expose parameters that users will actually want to adjust

// Focus on key parameters
/* @tweakable main color theme */
const primaryColor = "#4a90e2";
✅

Group Related Parameters

Organize related values into objects for better UX

/* @tweakable lighting configuration */
const lighting = {
    intensity: 1.0,
    color: "#ffffff",
    shadows: true
};

💡 Pro Tips

  • Performance: @tweakable values update in real-time, so avoid exposing computationally expensive parameters
  • User Experience: Group related controls together using objects for a cleaner interface
  • Debugging: Use @tweakable annotations to quickly test different values during development
  • Accessibility: Provide clear descriptions to help users understand what each control does
  • Creative Process: Perfect for iterating on visual effects, animations, and interactive elements
